Name: DMC-100 Clamp Meter Multimeter
SKU: 1481
Availability: BackOrder

Description

AC/DC Clamp Meter-Multimeter

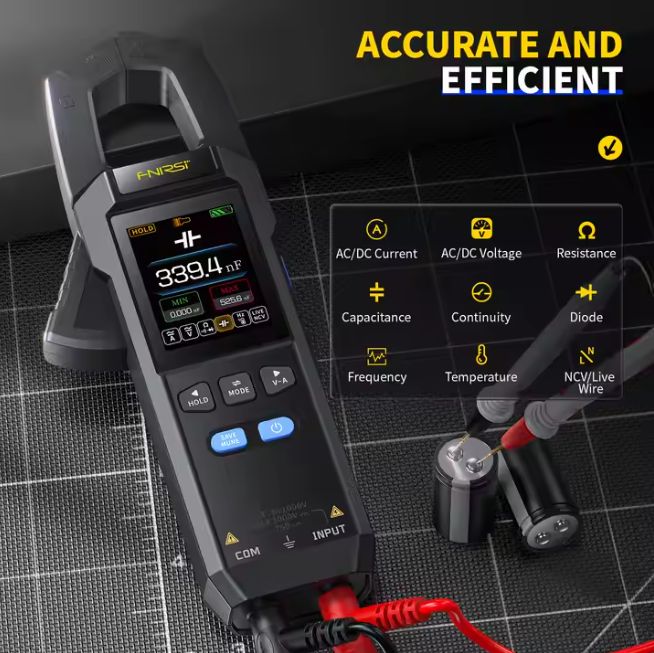

The FNIRSI DMC-100 is a full-feature 10,000-count High-presicion intelligent Clamp Meter, offering up to 1,000V voltage and 600A current range measurement. It also measures Resistance, Capacitance, Continuity, Diode, Frequency, Temperature and NCV/Live wire.

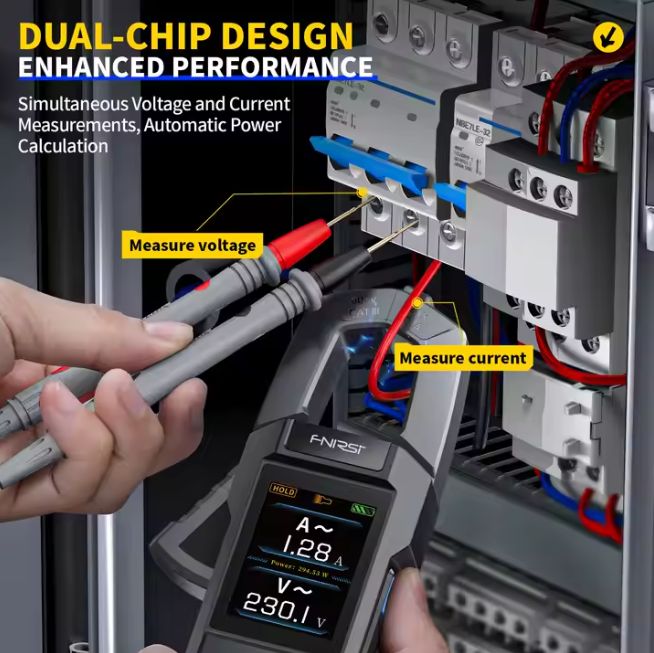

The multimeter’s clamp can open 25mm. It has a 1500mAh rechargeable lithium battery with auto shut-off, a 2.0 inch full-colour display, and intelligent anti-burn protection. It can display waveforms and save and review up to 8 sets of data, storing up to 30 sets of historical data. The meter features a dual-chip design that enables you to simultaneously measure voltage and current, with automatic power calculation.
The FNIRSI DMC-100 Clamp Meter is an ideal companion for technicians, whether it is for engineering maintenance, laboratory research, vehicle overhaul or home electrical diagnostics.

FNIRSI DMC-100 Clampmeter Demo

Technical Specifications:

DC Voltage range: 9.999V ~ 1,000V
AC Voltage range: 9.999V ~ 750.0V
DC & AC Current range: 99.99A ~ 600.0A
Resistance: 999.9Ω ~ 9.999MΩ
Capacitance: 9.999nF ~ 9.999mF
Frequency: 9.999Hz ~ 9.999MHz
Temperature: -55℃ ~ 1300℃
Diode
On-off Test
Non-contact Voltage Check (NCV)
Zero Fire Wire Check
Measuring Modes: General / Waveform Display / Power Measurement
Measurement Gear: Manual adjustment
Torch
Data Zeroing
Maximum/Minimum Value
Waveform Display
Power Calculation
Data Hold
Data Storage & Viewing: Up to 30 groups of data
Screen Brightness Adjustment
Auto-power Off: OFF / 5min / 15min / 30min
Firmware Upgrade: supported

Features:

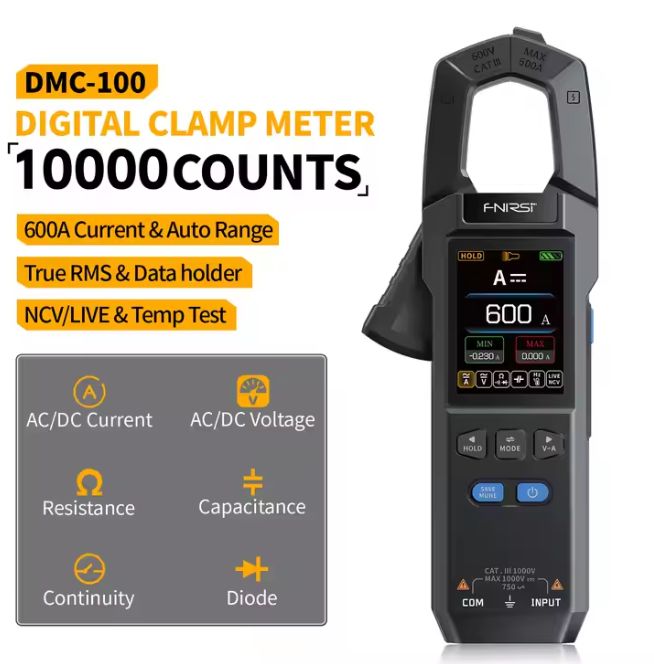

High-Precision Measurement: 10,000-count True RMS intelligent clamp meter for accurate readings.
Wide Measurement Range: Supports up to 750V voltage and 600A current.
High-Quality Display: 2.0-inch 240 × 320 full-color TFT screen for clear visuals.
Intuitive Interface: New UI with data curve display for easy reading at a glance.
Three Measurement Modes: Switch freely between general measurement, waveform display, and power measurement modes.

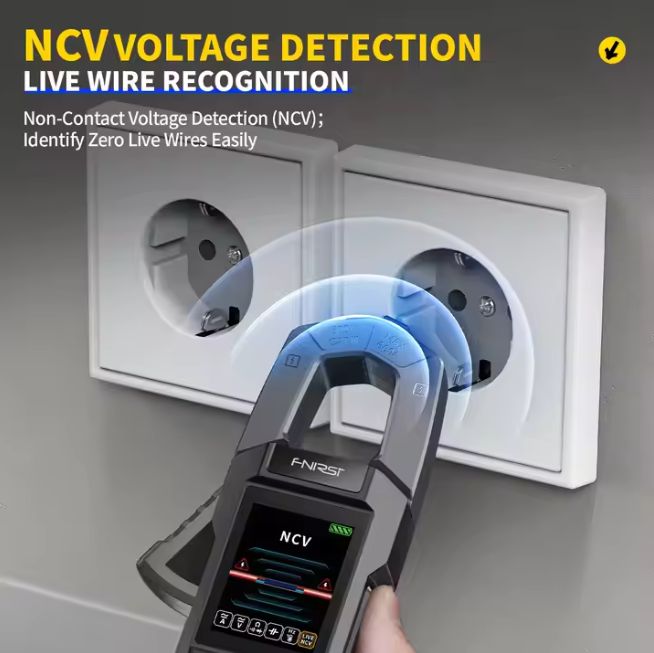

NCV Function: Non-contact voltage measurement and zero/fire line identification.
Wide Temperature Range: Measures temperatures from -55°C to 1300°C.
Long-Lasting Battery: Built-in 3.7V 1500mAh battery for extended usage.
Type-C Interface: Convenient charging and data transmission via Type-C port (only for firmware transmission).
Additional Functions: Includes a flashlight, screen backlight, and data-saving capabilities.
Auto Power-Off: Intelligent automatic shutdown to conserve battery life.
Temperature Unit Switching: Easily switch between temperature units (℃/℉).
Adjustable Brightness: Screen brightness is adjustable for various environments.
Firmware Upgradeable: Supports firmware updates to enhance functionality.
